Dimension Table

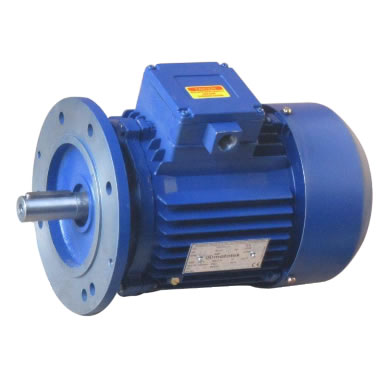

Flange Mounted (B5) Construction

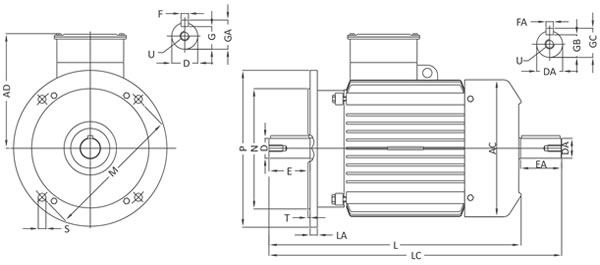

Flange Mounted (B5) Construction

Dimension Table of Flange Mounted (B5) Construction


FRAME SIZE L LC AC AD D DA E EA F FA GA GC G GB P MAX M N S NO. OF HOLES. T MAX. U LA TOL ON D,DA TOL ON F,FA TOL ON M TOL ON N
63 210 238 115 95 11 23 4 12.5 8.5 140 115 95 10 4 3 M4 9 +.008 (J6) -.003 +.0 +.03 +.013 -.009 (J6)
71 240 275 140 105 14 30 5 16 11 160 130 110 10 4 3.5 M5 9 -.030 (J6)
80 277 322 162 128 19 40 6 21.5 15.5 200 165 130 12 4 3.5 M6 10 +.009 -.004 (J6) +.014 -.011 (J6)
90S 312 369 173 135 24 50 8 27 20 200 165 130 12 4 3.5 M8 10 +.0 -.036 (H9)
90L 337 394 173 135 24 50 8 27 20 200 165 130 12 4 3.5 M8 10
100L 370 437 195 165 28 60 8 31 24 250 215 180 15 4 4 M10 11
112M 397 463 226 178 28 60 8 31 24 250 215 180 15 4 4 M10 11 +.008 -.002 (K6)
132S 450 540 260 198 38 80 10 41 33 300 265 230 15 4 4 M12 12
132M 488 578 260 198 38 80 10 41 33 300 265 230 15 4 4 M12 12 +.0 -.043 (H9) +.05 +.016 -.013 (J6)
160M 580 700 310 240 42 110 12 45 37 350 300 250 19 4 5 M16 13
160L 624 744 310 240 42 110 12 45 37 350 300 250 19 4 5 M16 13
180M 635 757 360 260 48 110 14 51.5 42.5 350 300 250 19 4 5 M16 13
180L 673 795 360 260 48 110 14 51.5 42.5 350 300 250 19 4 5 M16 13 +.016 -.015 (J6)
200L 760 880 390 295 55 110 16 59 49 400 350 300 19 4 5 M20 15 +.030 -.011 (M6)
225M/S* 795 945 400 295 55 110 16 59 49 450 400 350 19 8 5 M20 16 +.018 -.015 (J6)
225M/S** 825 975 400 295 60 140 18 64 53 450 400 350 19 8 5 M20 16
250M/MX* 940 1090 490 335 60 140 18 64 53 550 500 450 19 8 5 M20 18
250M/MX** 940 1090 490 335 65 140 18 69 58 550 500 450 19 8 5 M20 18

NOTE: * For 2Pole Motor ** For 4,6,8 Pole Motors
